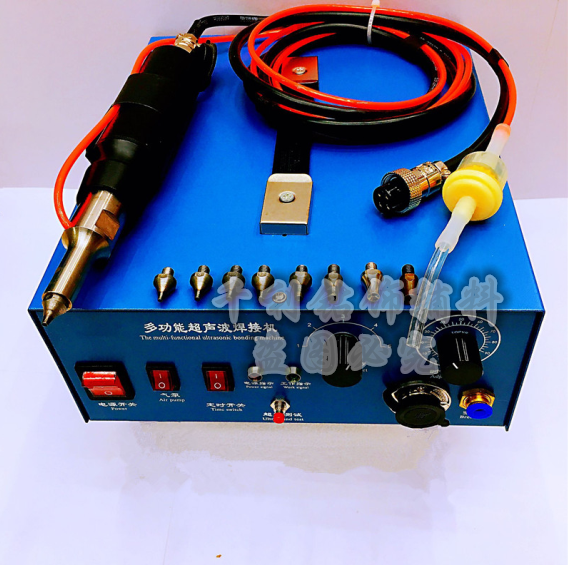

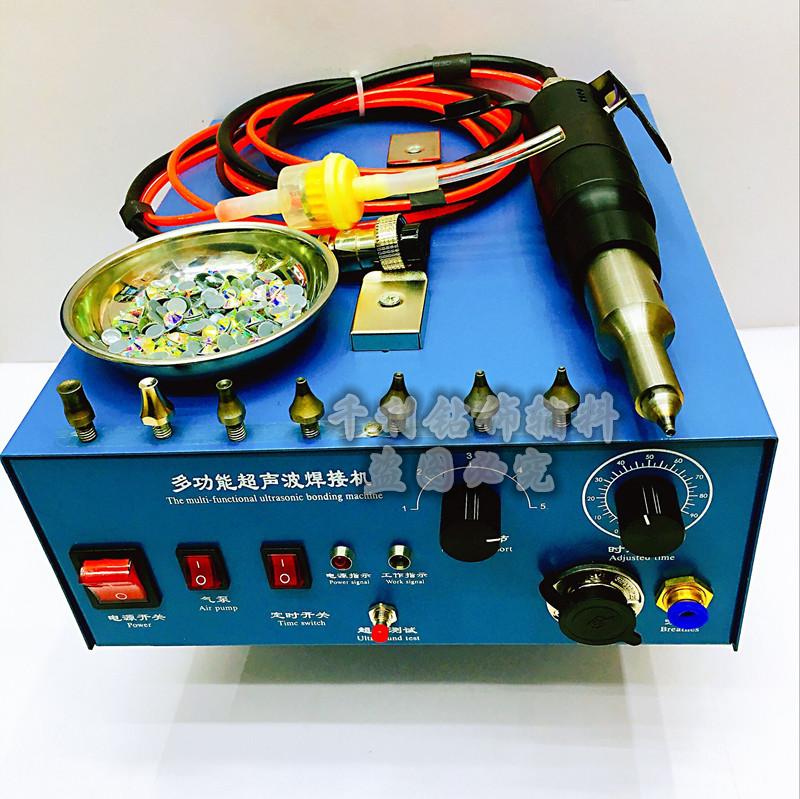

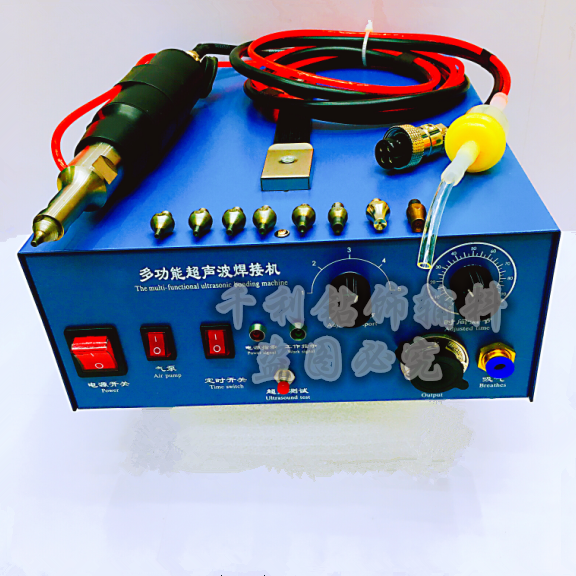

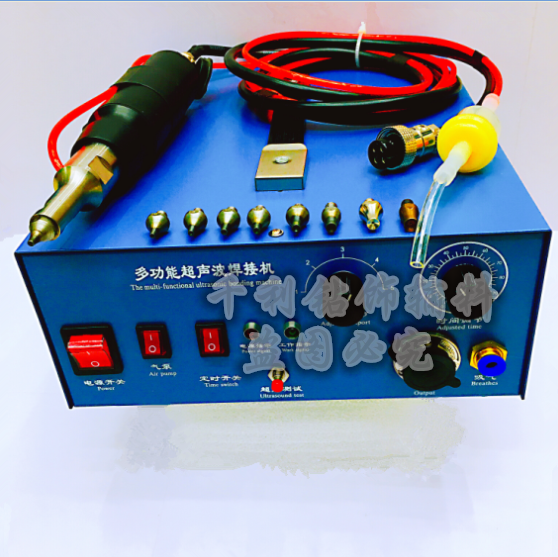

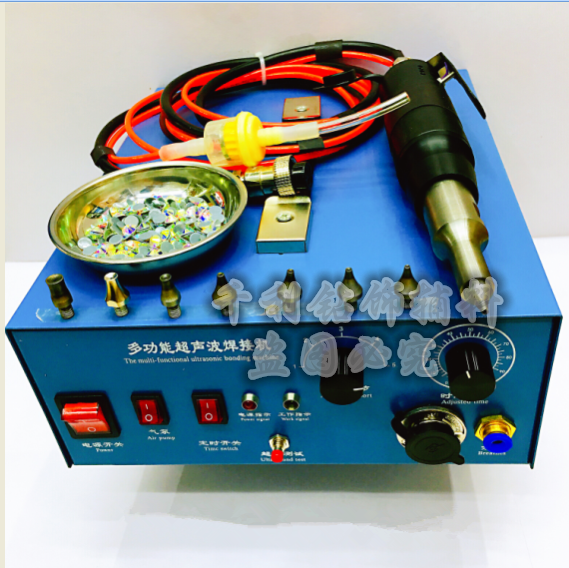

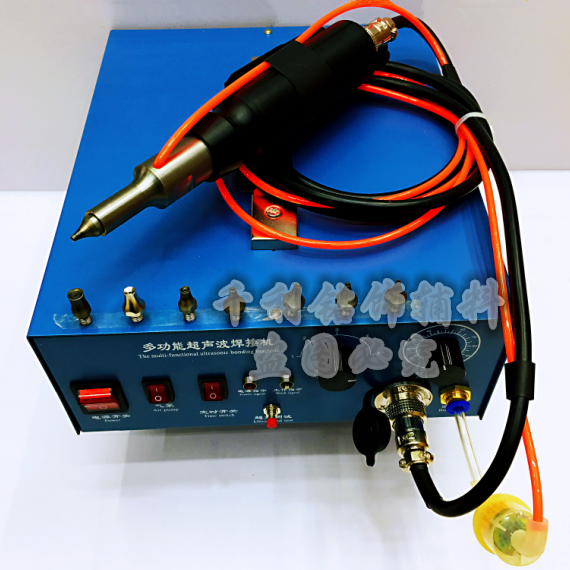

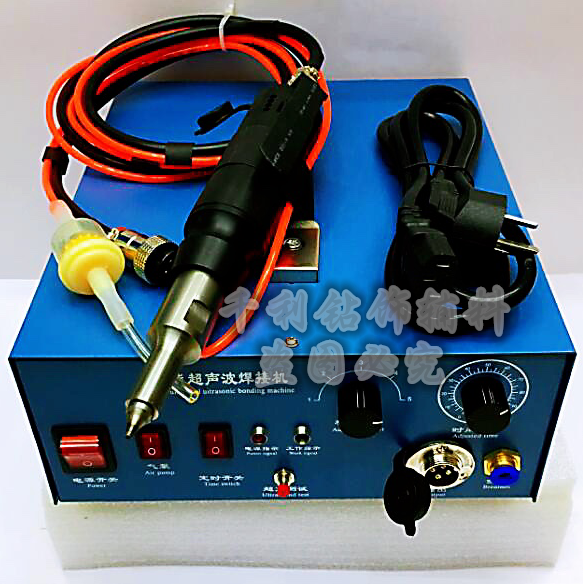

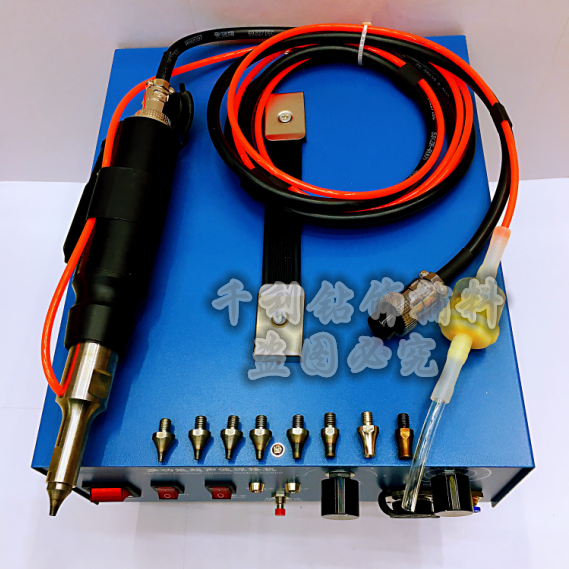

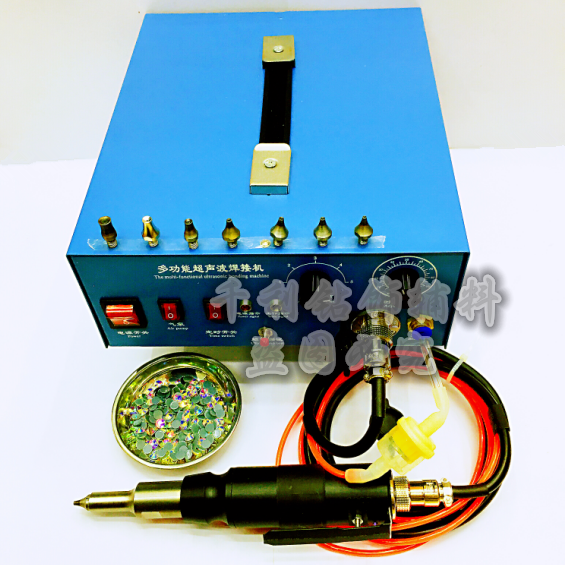

Double saint ultrasonic point drill welding point melting machine wedding dress ironing special drilling tool

Ultrasonic point drilling machine insert drilling machine interface:

The ultrasonic point drill machine can point; Glass drill/Middle East drill/Korean drill /DMC drill/acrylic/flat piece/resin drill/ hot drill, water drill, ironing sheet, flat piece, semi-circle, gold bead, shaped glass drill, bright piece, ceramic, drawing ironing sheet, point adhesive cloth, point melt plastic, all kinds of adhesive products and so on!!

Brightly decorated; It can be used for decoration products, dancing clothes, Latin dancing clothes, wedding dresses, shoes, hats, trousers, socks, bags, toys, children's clothes, ornaments, etc. Production manufacturers hot drilling, point drilling, redrilling, insert drilling, row drilling, ceramics, gold beads;All kinds of headgear, hair clips, ornaments, drill-point drills, necessary equipment, look forward to dear friends attention exchanges.

Operation function introduction;

Ultrasonic hot drilling rig (point) is the use of ultrasonic vibration releasing energy drive drill or accessories on the surface can be adhesive materials high temperature, high speed friction and quickly melted contact surface of rubber, the unity, so as to achieve the aim of paste, paste structure is very strong, not easy to fall off. Suitable for all types of acrylic drill, water drill, ironing drill, ironing sheet, etc. Widely used in garment processing, handicraft processing, shoe-making, toys, greeting CARDS, bags, scarves, belts, hats, socks and other products of drilling or plastic fabric weldingProcessing etc.

Operation method

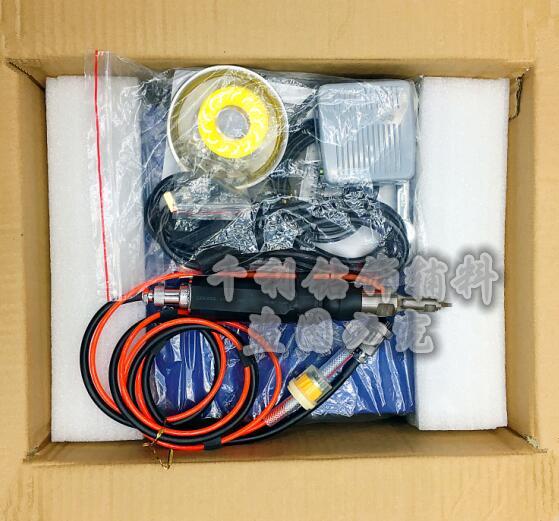

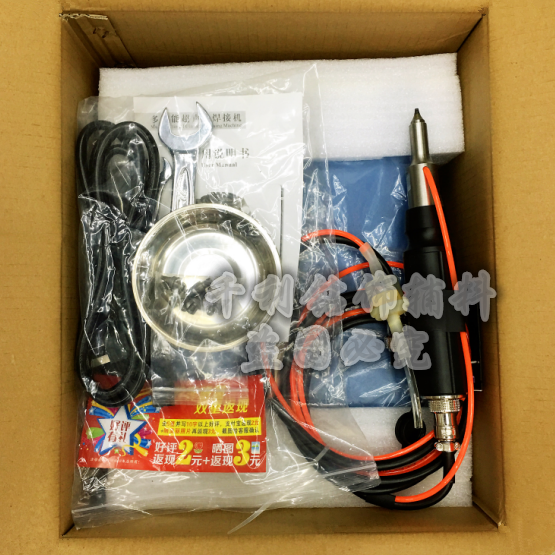

1. Take out the main machine and connect the attached power cord and ultrasonic output cable to connect the power.
2. Turn on the suction switch (mainly for controlling the suction drill), turn on the timing selection switch, and turn on the power switch.
3. Power adjustment: it mainly controls the strength of ultrasonic output, the thicker the material is, the harder it is to weld, and the higher the gear level of power adjustment is required.
4. Set the time to0.1-0.1Between the second (30 40 # # -Drill down to0.2 to 0.5A second)
5. Hold the transducer in your right hand and place your index and middle fingers on the switch3Four fingers to hold the rechargeable device.
6. Welding procedure:1And absorb drill2, put it vertically in the paste position3Press the contact switch4, work light off5Release the switch.
