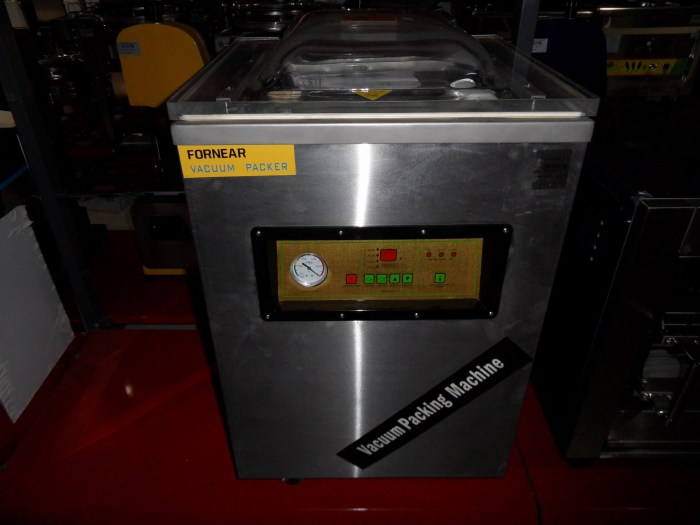

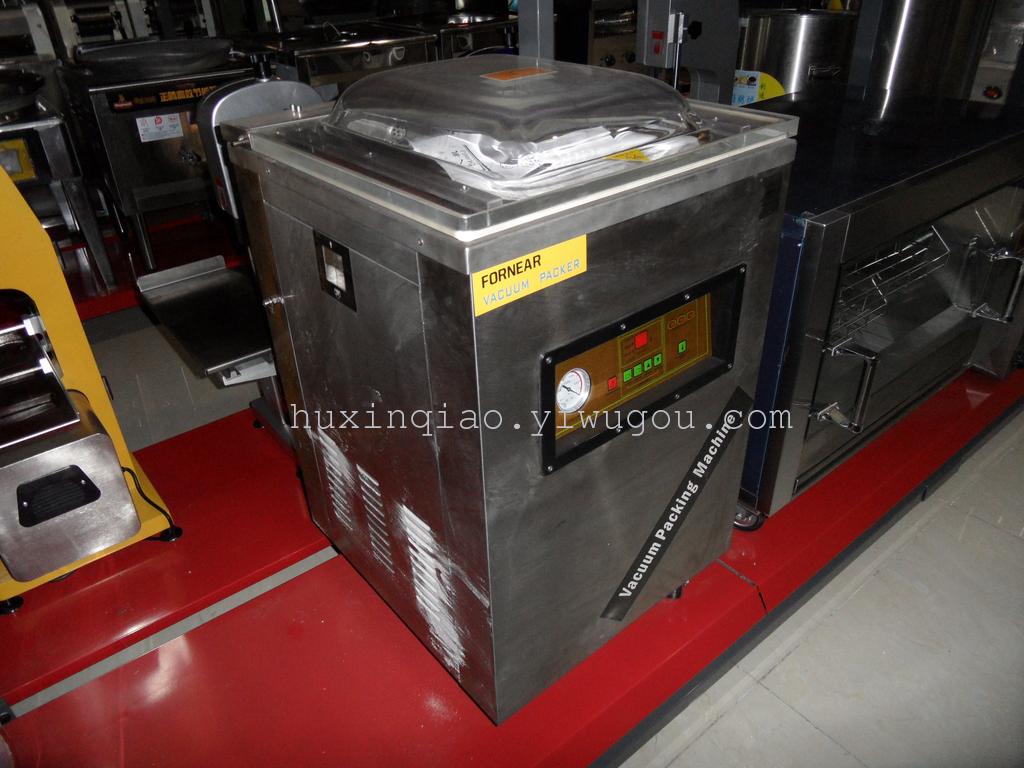

Floor vacuum packaging machine dz - 400/2 e (vacuum chamber stainless steel)

Product introduction DZ(Q) series single-chamber vacuum packaging machine dz-400,500,600/2e, according to the specified operating procedure, press the vacuum chamber cover, DZ(Q) series single-chamber vacuum packaging machine dz-500/2e can complete the entire process of vacuum filling with inert gas, sealing, printing, cooling and exhaust according to the set procedure. The products after vacuum packaging by a single-room vacuum packaging machine can effectively prevent oxidation, mildew, moth, dampness and prolong the storage period of products. We can customize the products according to the specific size of users. Technical parameters

model	DZ (Q) - 400/2 e	DZ (Q) - 500/2 e	DZ (Q) - 600/2 e
The power supply	110-220 - v / 50 to 60 hz	220-380 - v / 50 to 60 hz	220-380 - v / 50 to 60 hz

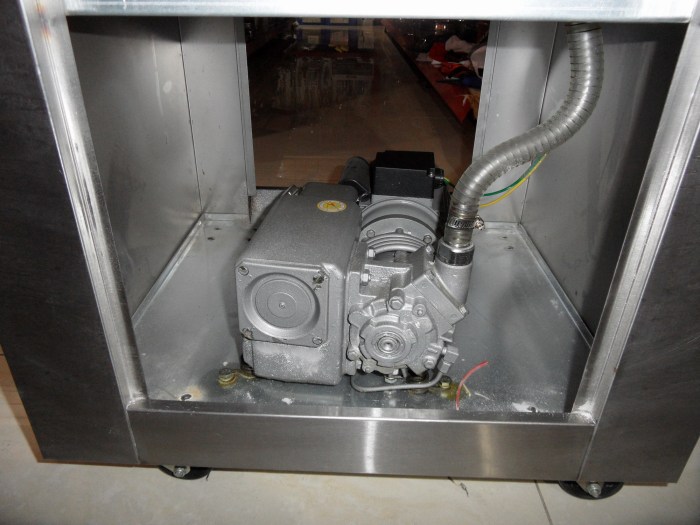

Vacuum pump power	0.75 KW	0.75 KW	0.8 KW
Heat sealing power	0.5 KW	0.6 KW	0.7 KW
Minimum absolute pressure		1.33 Kpa
Vacuum chamber volume	440 * 420 * 420 mm	520 * 500 * 500 mm	650 * 595 * 595 mm
Hot seal dimension	400 x 10 mm	500 x 10 mm	Simgle: 600 x 10 mm Dounle: 570 x 10 mm
Number of hot seals	1 or 2 PCS	1 or 2 PCS
Vacuum pump exhaust volume	20 m3 / h	20 m3 / h	40 m3 / h

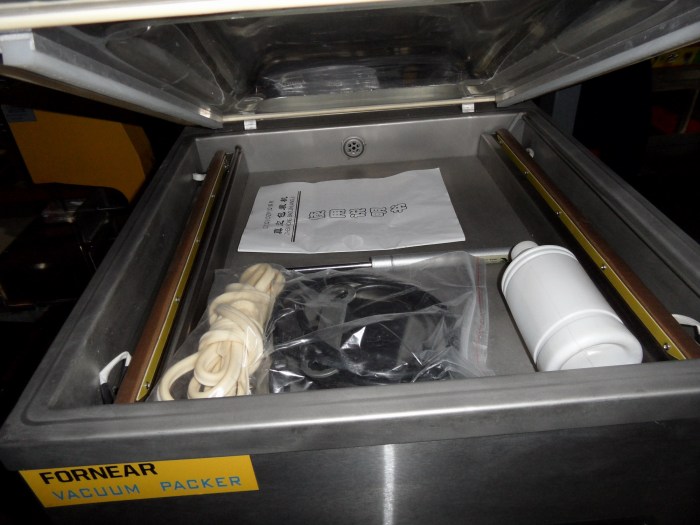

Vacuum chamber material	Stainless steel (Stainless steel)
The machine size	540 * 490 * 490 (mm)	610 * 520 * 520 (mm)	730 * 710 * 710 (mm)
Machine weight	120 kg	140 kg	160 kg
