Detail

Hualian Machinery Group Manufacturing

contact number:18658923866





   DZ/T series desktop vacuum packaging machine


DZ-280/C

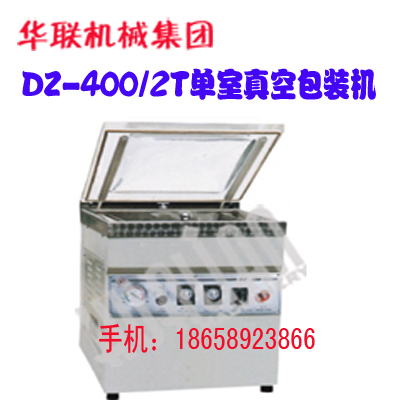

DZ-400/2T

DZ-500/T

DZ-900/T

Product Description:

DZ-280/C desktop vacuum packaging machine is suitable for vacuum extraction and sealing of small and high packaging bags, such as packaging of materials that are easy to dump, such as tea and coffee.

DZ/T the series of products all enjoy Chinese patents with independent intellectual property rights of our company:...

The desktop vacuum packaging machine has compact structure and is suitable for site work which needs to be moved frequently in a relatively narrow field. Because the machine body is not high and the studio is deep, it is suitable for packaging larger objects; or form a linked production line with a conveyor.

Easy to operate, the machine can complete the whole process of vacuum pumping, inflation (optional), sealing, cooling and connecting the atmosphere according to the set procedure by pressing the vacuum chamber cover.

Warp pumping vacuum or inflatable packaging materials can prevent oxidation, mildew, Moth, moisture and prolong the storage period of products.



The sealing line of the DZQ-900/T model is L-shaped, and you can choose any sealing method according to your needs.

The electrical control system of this series of models includes relay automatic control and computer board automatic control, which can be selected by users.

The shell and vacuum chamber of this model are made of stainless steel and vacuum cover are made of plexiglass.

Technical parameters:



DZ-280/C

DZ-400/2T

DZ-500/T

DZ-900/T

power supply voltage (V/Hz)

AC 380/50 220/50 110/60

Vacuum pump motor power (W)

370

900

1800

Heat sealing power (W)

150



1000

Vacuum limit (Kpa)

1

Number of heat seals per Chamber

1

2

1

1-2

Heat seal length (mm)

280 × 10

400 × 10

470 × 10

520 × 10, 780 × 10

Heat seal width (mm)

10

Vacuum chamber size (L × W × H) (mm)

300 × 90 × 300

440 × 420 × 140

506 × 556 × 190

906 × 556 × 190

Vacuum pump exhaust volume (m3/h)

8

20

40

Vacuum Chamber material

Stainless steel Stainless steel

Overall dimension (L × W × H) (mm)

500 × 350 × 350

480 × 535 × 510

586 × 670 × 504

986 × 670 × 504

Net Weight (kg)

36

80

98

245
