Product Description:
HVC-510 series of products all enjoy Chinese patents with independent intellectual property rights of our company: ZL201020175587.7 ,ZL200720039047.4
After vacuum packaging, the goods can be moisture-proof, mildew-proof, anti-corrosion and extended storage time under sealed conditions. After vacuum pumping, inert gas is filled and stored for a longer time; And the fresh color of the material can be maintained.
The vacuum Inflatable packaging machine has the same technical parameters related to the HVC-510 vacuum packaging machine, and its model is HVC-510S/2A-G or HVC-510S/2B-G. If the order needs to be filled with mixed gas after vacuum pumping, the type and quantity of the inflatable body must be stated; Special supply device should be configured as needed.
The HVC-510 model is of moderate size and can pack larger objects or complete more small packages. It is suitable for continuous work in medium and small enterprises with high production efficiency.
The electrical control system of HVC-510 series vacuum packaging machine is divided into relay automatic control system and computer board automatic control system. Users can choose by themselves.
HVC-510S/2A Double-chamber vacuum packaging machine, two vacuum chambers are used alternately, and the working efficiency is high; The depth of the vacuum chamber is 40mm, which is suitable for packaging materials with considerable thickness.
HVC-510S/2B double-chamber vacuum packaging machine, the two sides of the flat table are used alternately, and the work efficiency is high. The Workbench is easy to wash and is more suitable for packaging materials with high moisture content.
HVC-510S/2C double-chamber ultra-thin cover vacuum packaging machine, the two sides of the flat table are used alternately, and the vacuum chamber cover design is relatively thin, so the vacuum chamber space is small, the pumping time is short, and the efficiency is high.

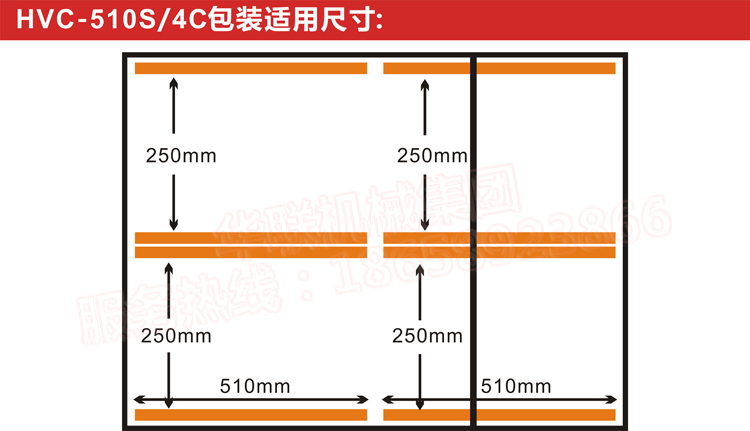

HVC-510S/4C double-chamber ultra-thin cover vacuum packaging machine, the two sides of the flat table are used alternately, and each side is designed with four sealing lines, which is suitable for vacuum extraction and sealing of smaller and thinner packaging bags. Higher production efficiency.
HVC-510 series can be equipped with 2 20 m/s vacuum pumps or a 40 m/s vacuum pump, or a 63 m/s vacuum pump or a 100 m/s vacuum pump.
HVC-510S/2C and HVC-510S/4C cannot be inflated.
Technical parameters:
|
|
HVC-510S/2SA
|
HVC-510S/2SB
|
HVC-510S/2C
|
HVC-510S/4C
|
|
power supply voltage (V/Hz)
|
AC 380/50 220/50 110/60
|
|
Vacuum pump motor power (W)
|
1800
|
1100
|
|
Heat sealing power (W)
|
600
|
800 × 2
|
|
Vacuum limit (Kpa)
|
1
|
|
Number of heat seals per Chamber
|
2
|
4
|
|
Heat seal length (mm)
|
510
|
|
Heat seal width (mm)
|
10 or 2 × 3
|
|
Vacuum chamber size (L × W × H) (mm)
|
610 × 550 × 160
|
610 × 550 × 150
|
610 × 550 × 45
|
610 × 630 × 45
|
|
Vacuum pump exhaust volume (m3/h)
|
20 × 2
|
40
|
|
Vacuum Chamber material
|
Stainless steel Stainless steel
|
|
Overall dimension (L × W × H) (mm)
|
1270 × 735 × 940
|
1270 × 735 × 930
|
1270 × 735 × 910
|
1270 × 820 × 910
|
|
Net Weight (kg)
|
220
|
230
|
|
