Packaging information
CTN Szie: 40 × 30 × 30 cm
G.W./CTN:9 kg
QTY/CTN:48 set/carton

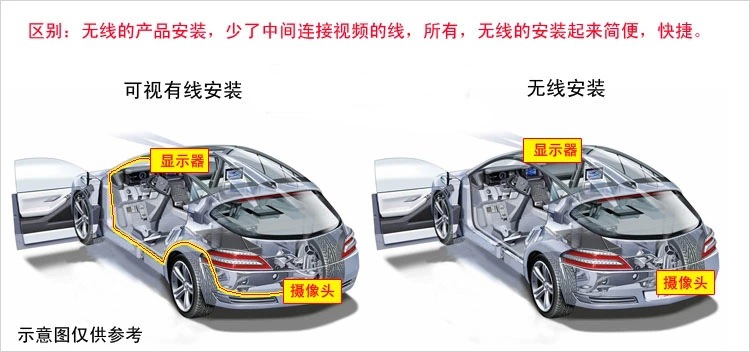

The special wireless receiver and transmitter for car camera save the trouble of installing camera routing. It is suitable for connecting on board navigation and car monitor. Otherwise connects the portable gps navigation wireless specific please Wangwang advisory customer service telephone 15507591161 qq609468692 2952729186 contacts, Mr. Shue

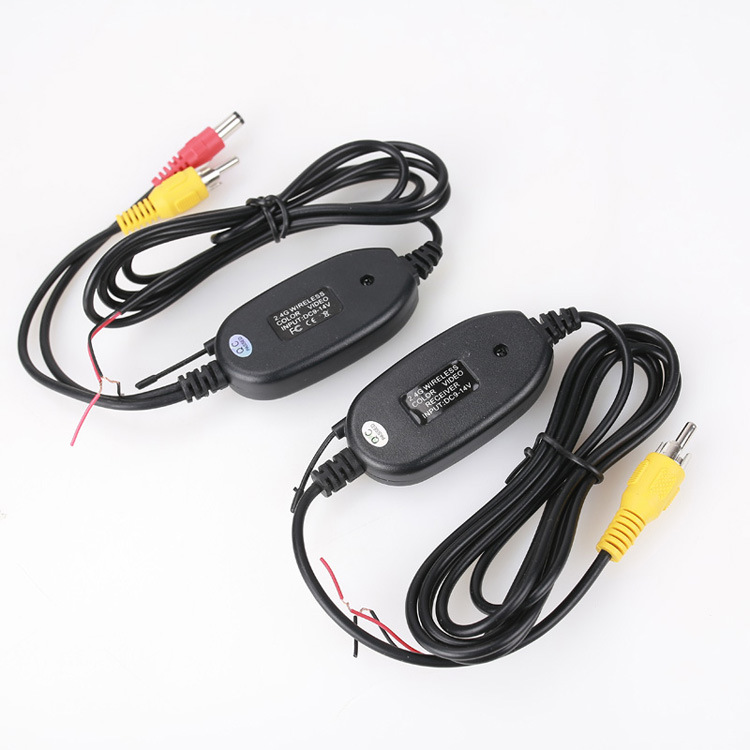

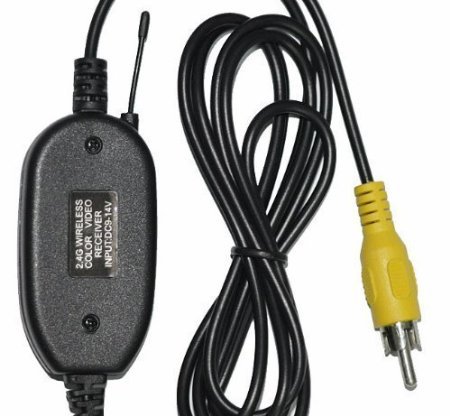

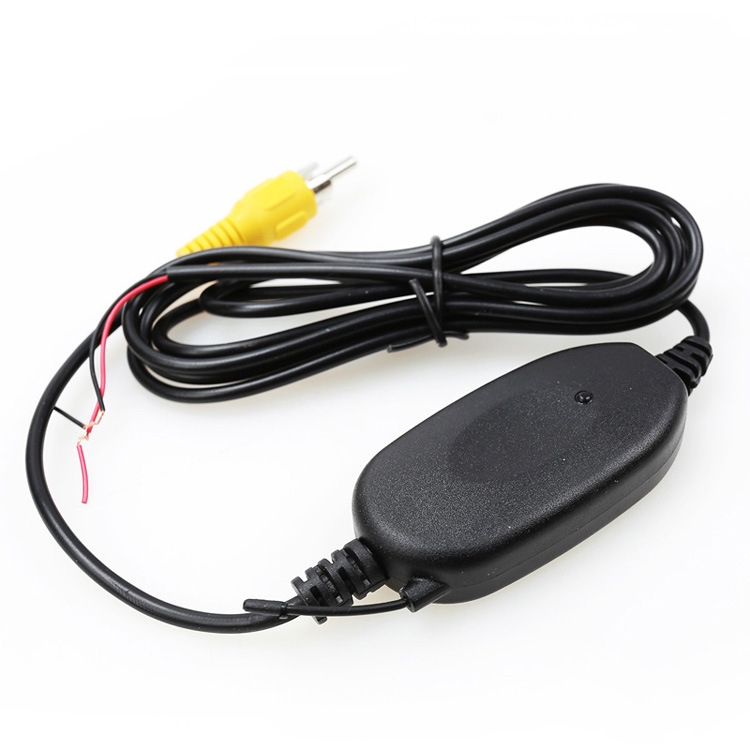

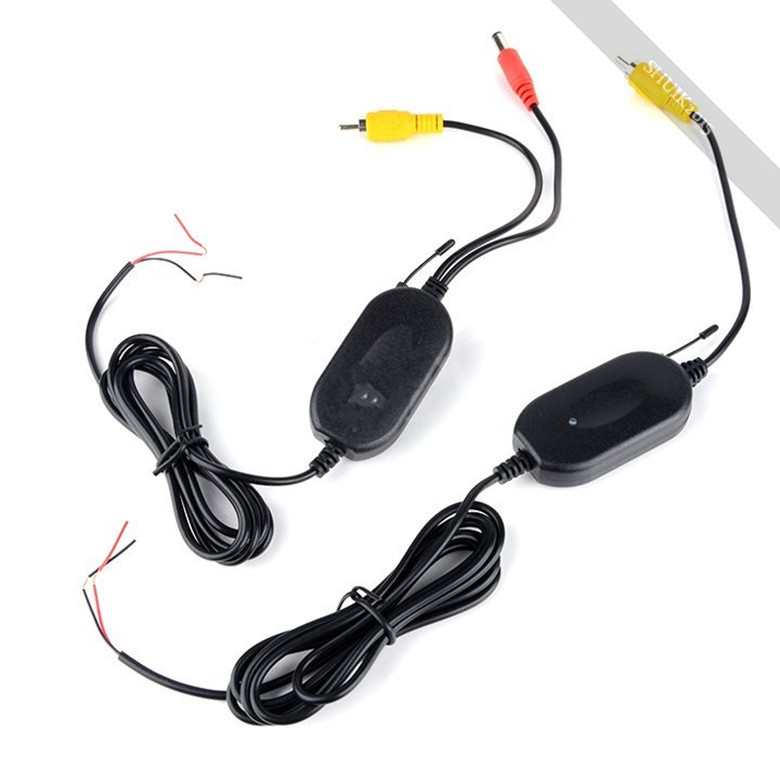

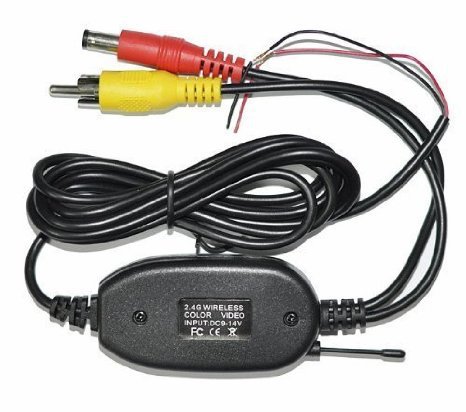

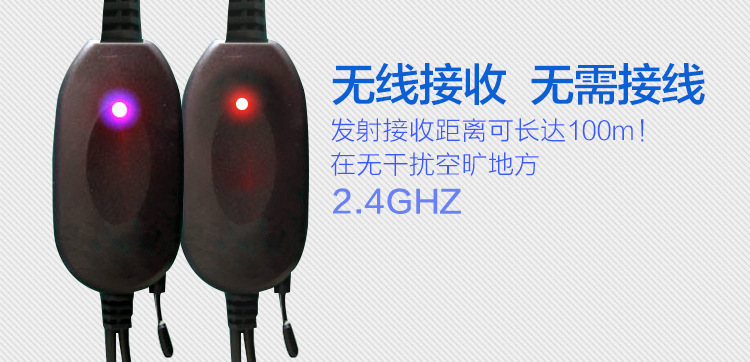

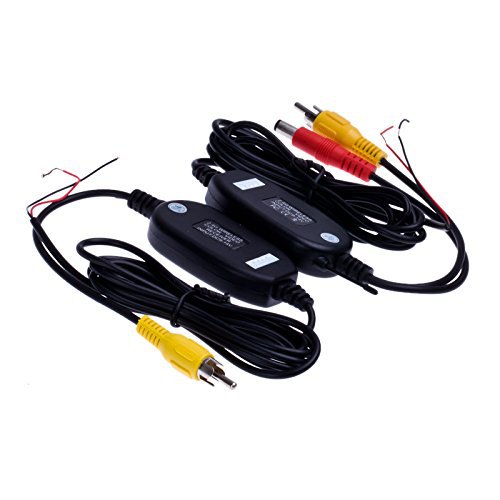

transmit Receive unit -- 2.4G can connect all cameras in our store and all monitors in our store can be equipped with different signal jacks such as GPS/DVD.
Product description:

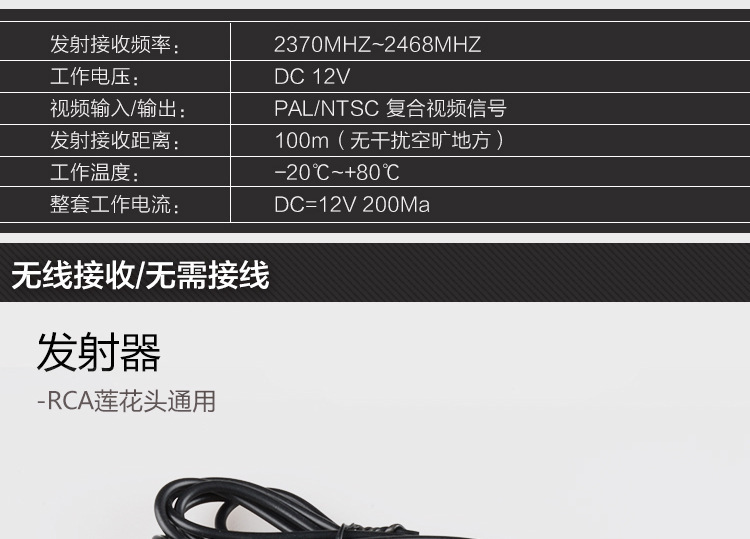

transmission frequency 2,400~2,483MHz transmission power 10mW/CE 2MW/FCC frequency range 2400~2483.5MHz operating frequency: 2414MHz/2432MHz/2450MHz/2468MHz (optional) system-based PAL/NTSC frequency stability ± 100kHz local oscillator leakage ≤-55dBm receiving sensitivity ≤-85dBm signal-noise ratio 38dB harmonic distortion 1.5%(100Hz ~ 15kHz) antenna input terminal integrated antenna (external) channel control fixed frequency point circuit skip video output level 1Vp-p ± 0.2V @ 75ohm power input DC 12V power output DC 5V(MINI USB interface)

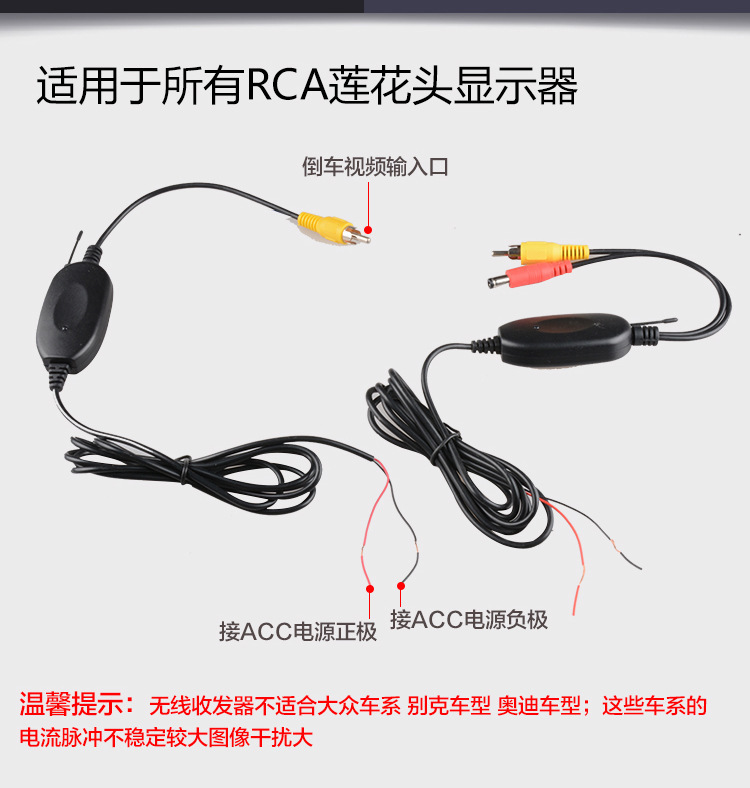

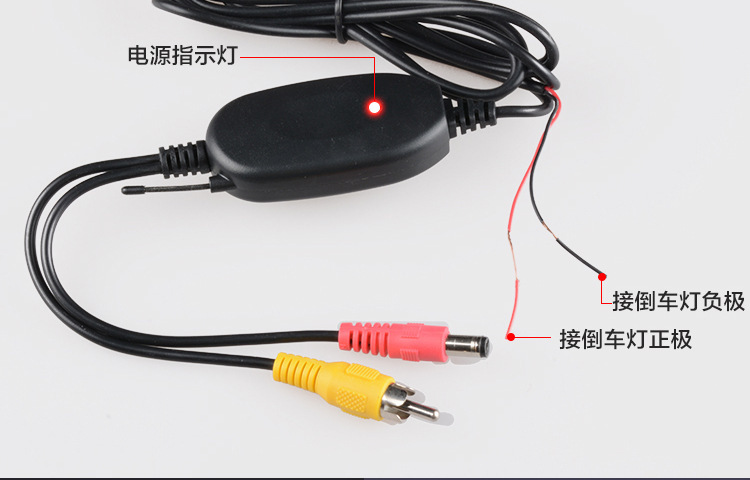

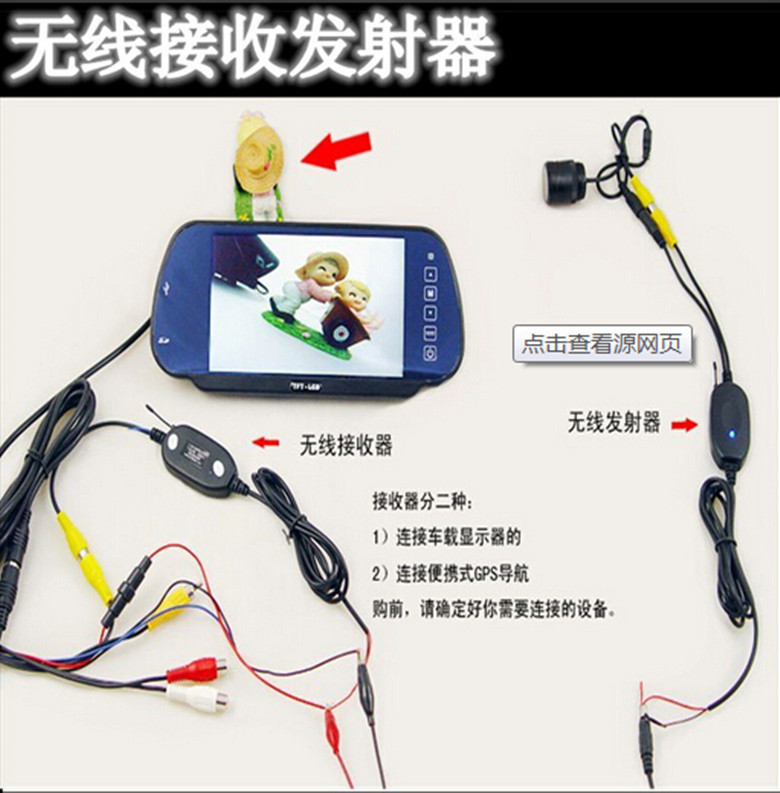

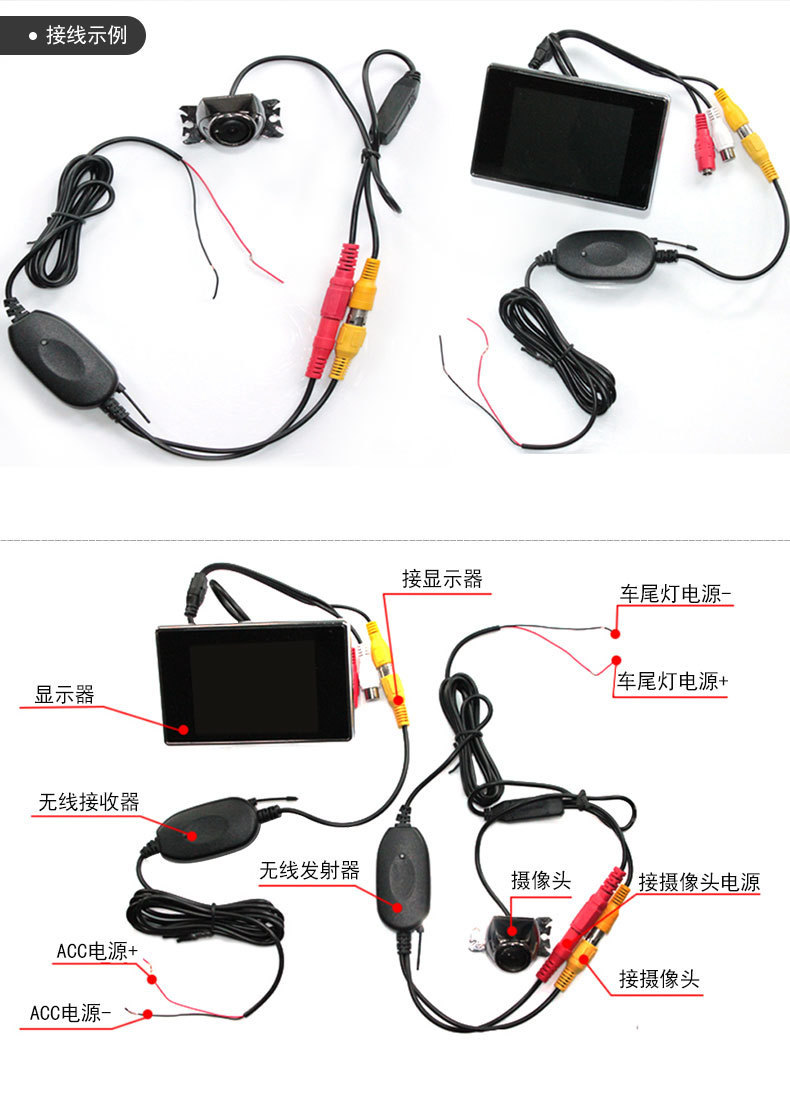

the camera is connected to the transmitter, and the transmitter is connected to 12V power supply from reversing light (installed in the back) or brake (installed in the front). The receiver is directly inserted into the cigarette lighter or connected to the 12V power supply.

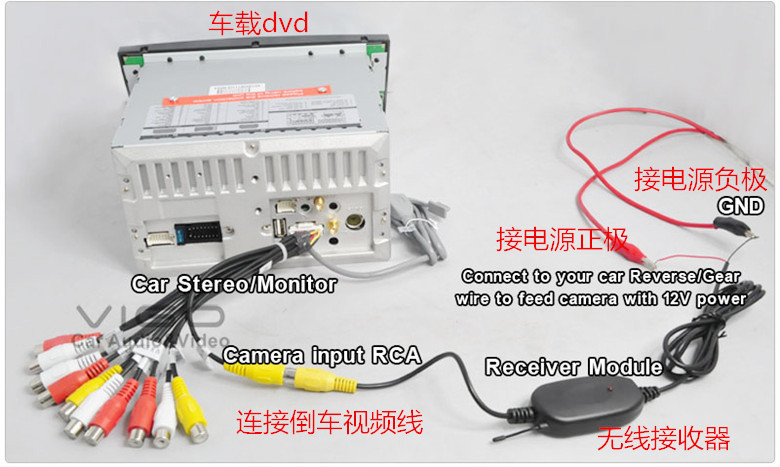

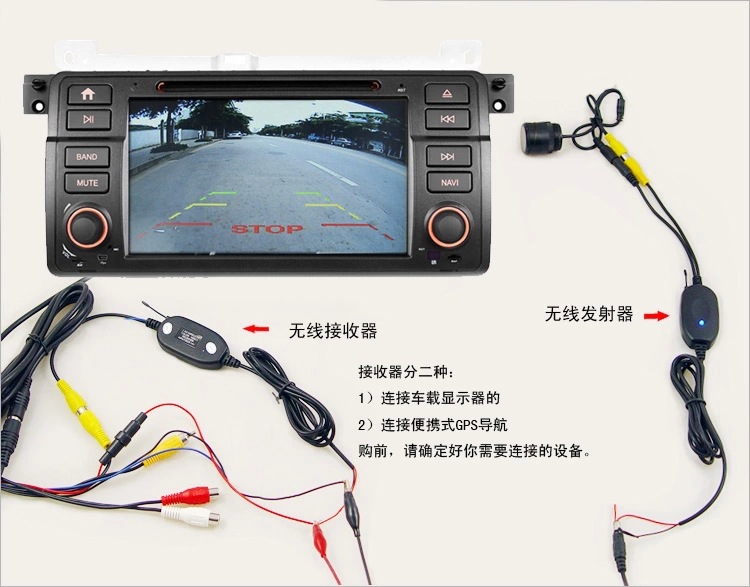

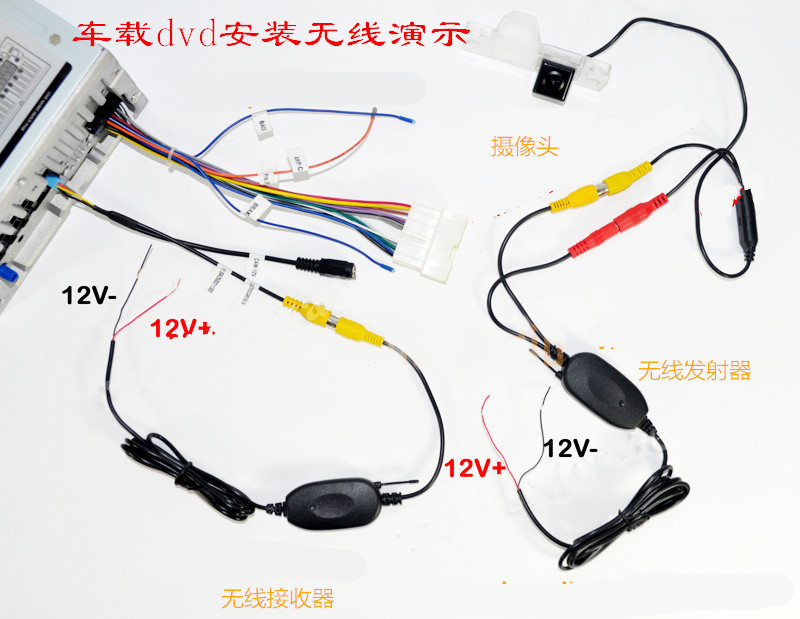

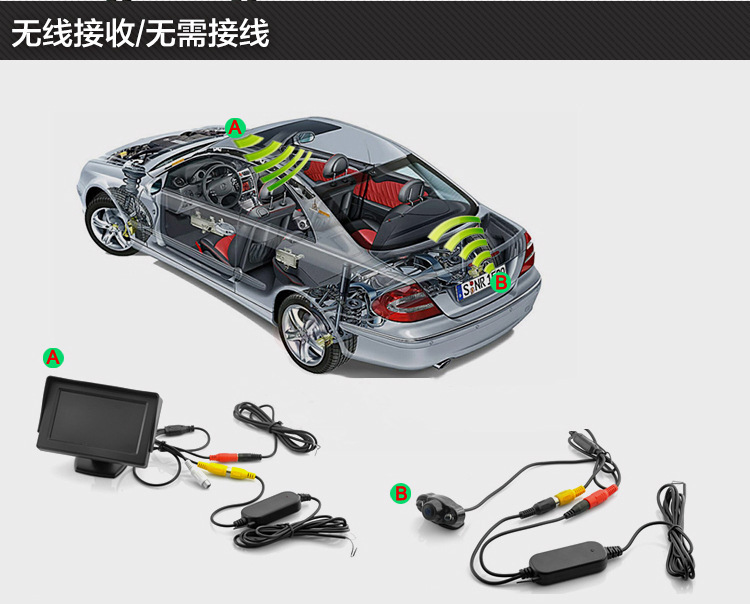

Car dvd installation effect the in-vehicle display installation effect
