Packaging information
CTN Szie: 40 × 30 × 30 cm
G.W./CTN:9 kg
QTY/CTN:48 set/carton

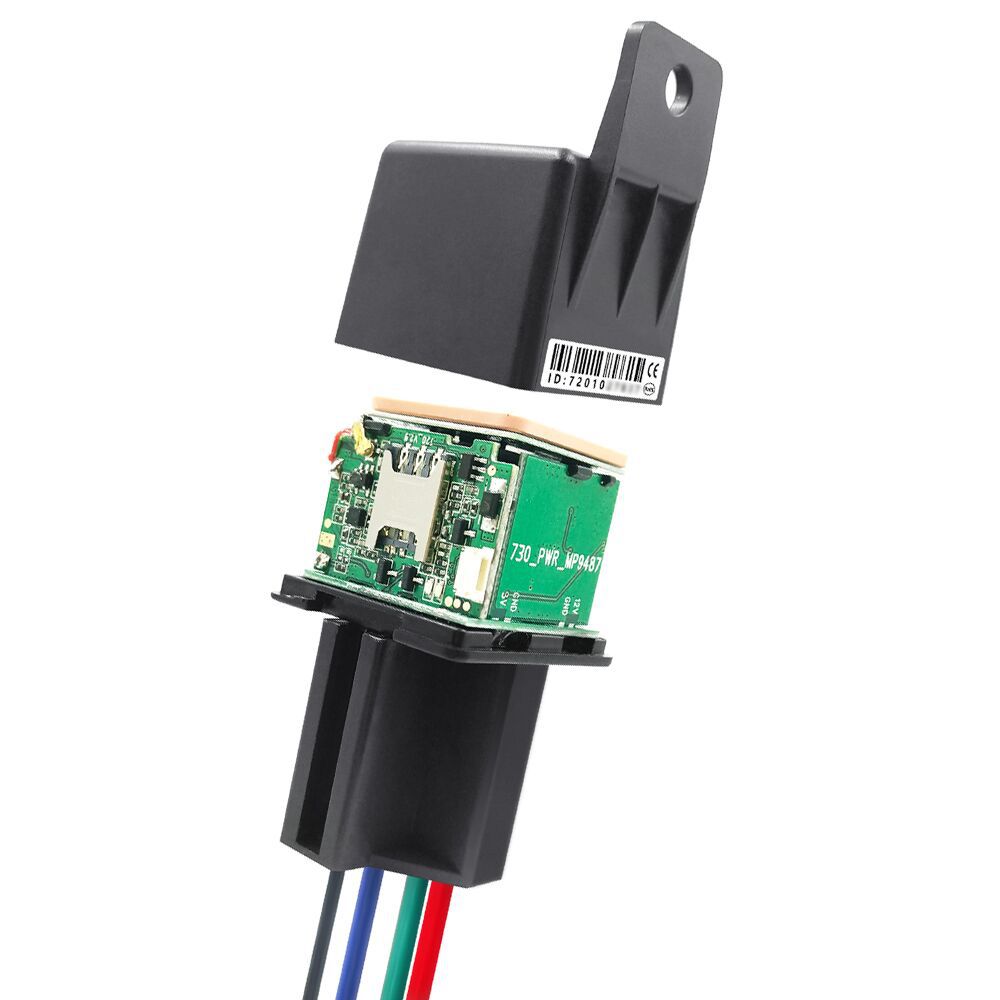

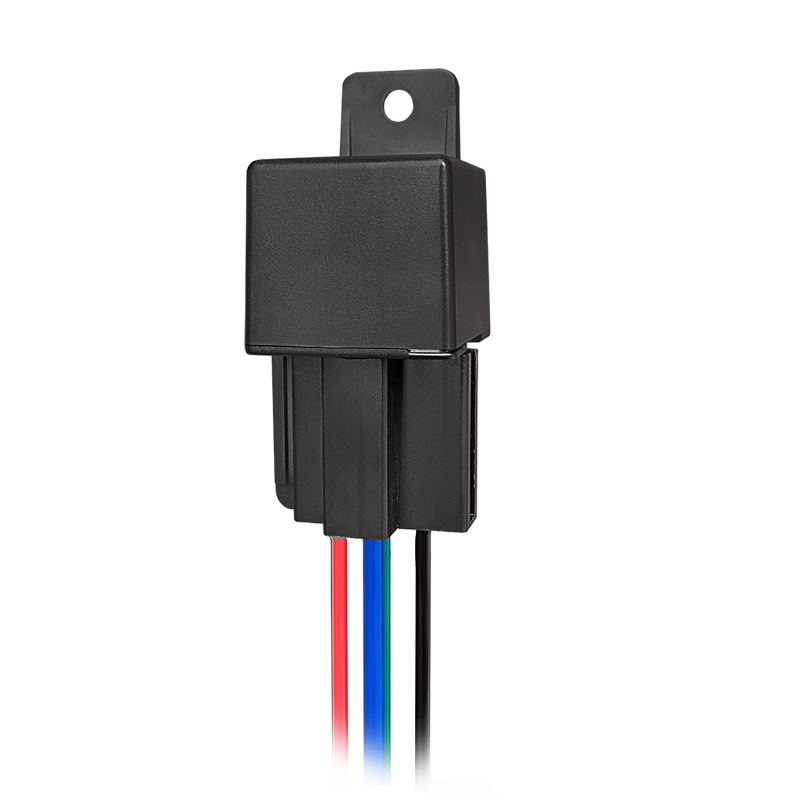

Car high camouflage GPS locator relay type positioning tracker miniature Mini anti-theft device CJ720 wholesale free platform fee
GPS and Russian GLONASS dual-mode positioning
◆ Real-time tracking ◆against pseudo base-station&detect◆ Vibration/Displacement/Low battery/Power off/over speed alert◆ Main power cut off alert ◆ Geo-fence◆ History Route ◆ Cut and resume oil remotely ◆ AGPS locating
Intelligent anti-theft system
Car start, automatically cancel the anti-theft mode; stop the fire, the positioner automatically enters the anti-theft mode
Multiple location tracking-24 hour upload
Glonass+GPS+LBS multi-mode positioning system makes the acquired position information more accurate and reliable, and rejects all errors;
Electric fence
Set the security zone. When the car enters or leaves the security zone, the mobile phone will receive the reminder at the first time. You can keep track of the car dynamics without opening the app.

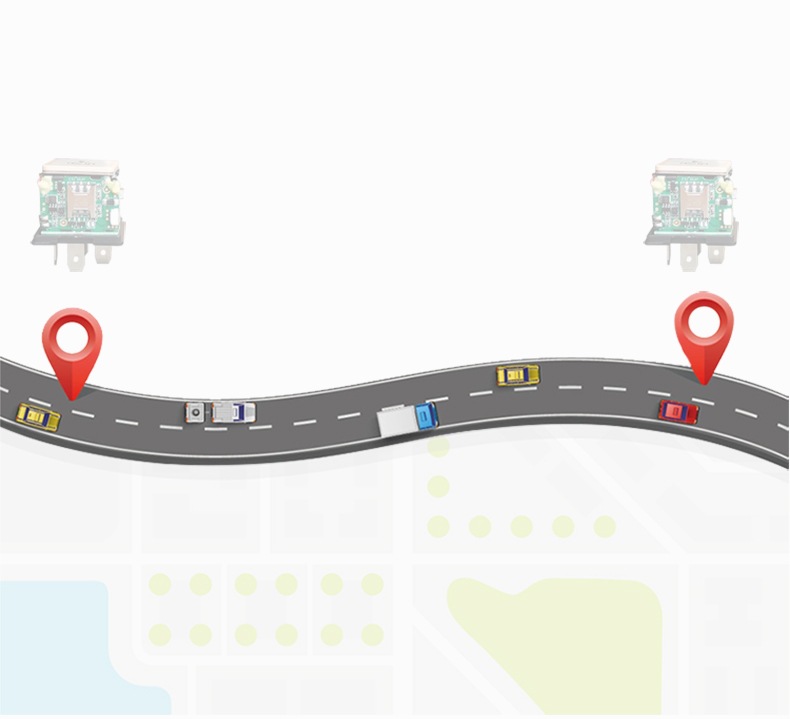

Historical track-180 days
Free storage of the cloud, recording the car's 180-day driving trajectory throughout day, in case of special circumstances, do not worry, the phone can be seen anytime, anywhere, it is so capricious.

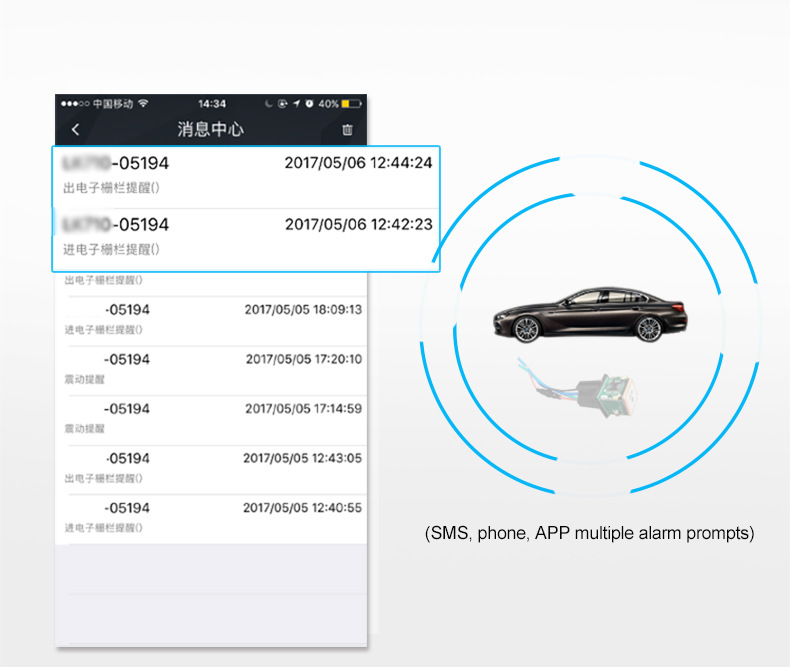

Vehicle vibration alarm
When the car is stationary, the positioner automatically enters the fortified state. When the car is moved or bumped, the positioner will immediately send an alarm message to the owner (sms, phone, APP, multiple alarm prompts)

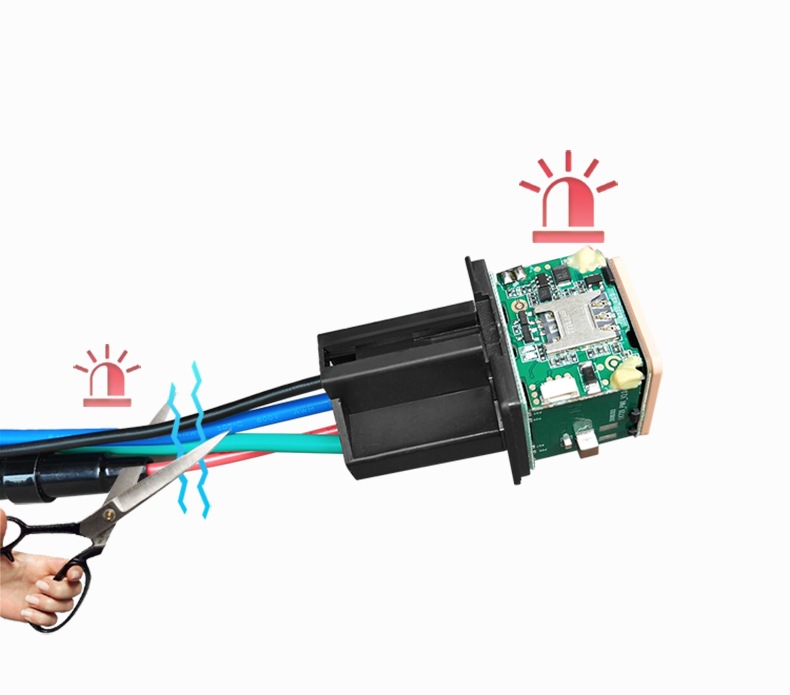

Equipment removal alarm
The device is equipped with a sensitive sensor, and when the device is removed or destroyed, the owner will immediately receive an alarm message.
Cut off Oil(The car can't be started, it can only start normally after it needs Restore Oil, and the speed is 60KM/H Cut off Oil - it can go out normally after about 2 minutes.)
IMEI number: Chile:You need to register for the GSM service using the IMEI number.
India, Pakistan, Turkey, Colombia
National customers are requested to note the valid IMEI number in the local country in the order.
We will modify it for you.

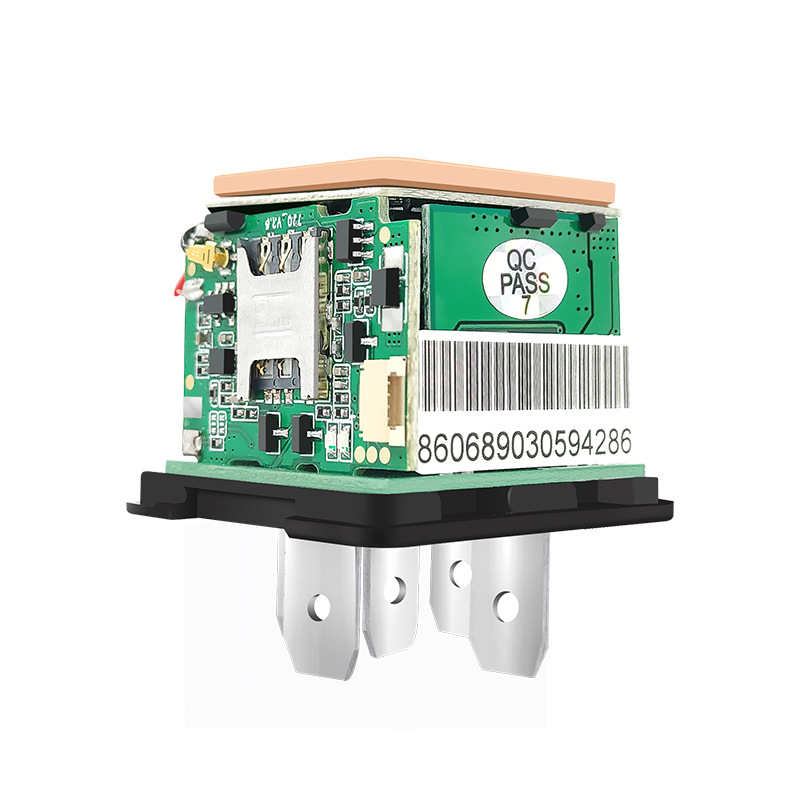

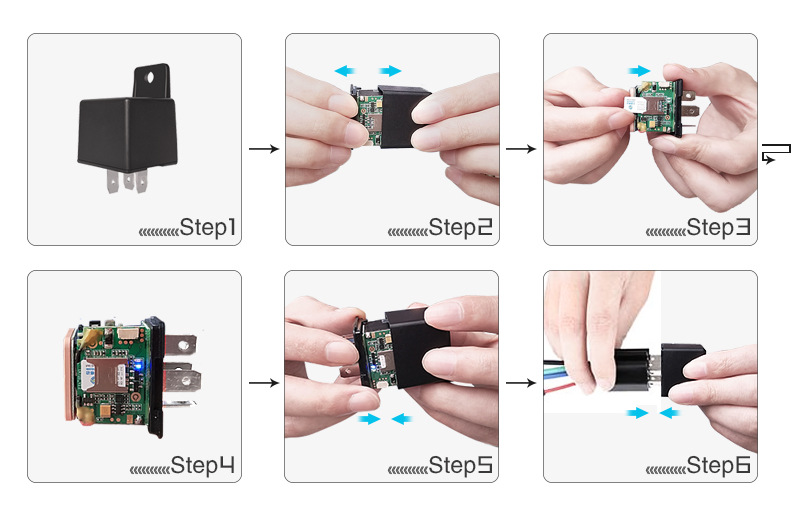

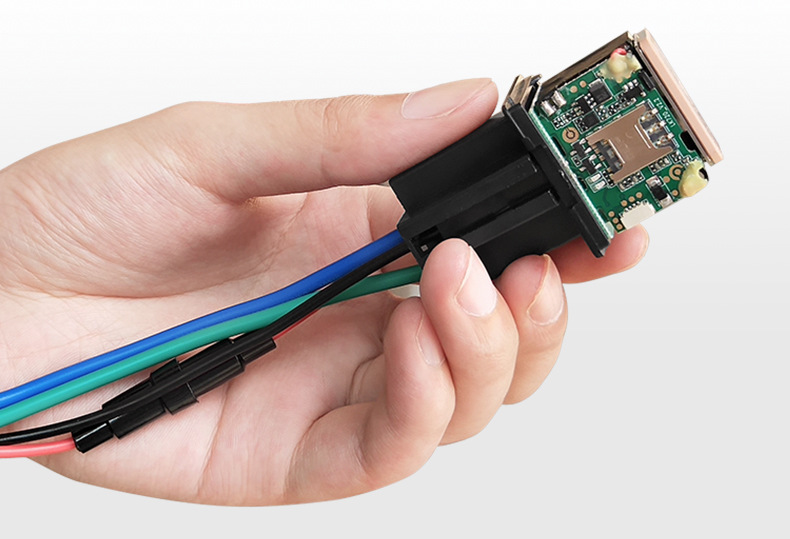

1. Open the device case. (Some countries need to use the GPS device to post a 15-digit IMEI number to register the GSM service. Turkey needs to submit the IMEI number when submitting the order, we will modify it for you)
2. Insert the SIM card (SIM card needs to be compatible with 2G network band: 850/900/1800/1900Mhz, and open SMS function, Internet traffic fee.)
3. Link 12V power supply: (GPS signal: blue light flashes, GSM signal: green light flashes)
4. Set the APN code: Set APN: APN123456 CMNET (please use your local APN instead of CMNET, if you do not know the APN content, you should contact your SIM card supplier) The setting in the video is you for the Chilean country.
5. GPS device parameter query SMS command: (s42, 1234).Check the IP address and APN settings of the GPS device.
6. GPS device status query command: status Main view: GPRS signal, GSM signal, GPS signal, main power link.
7. Platform IP address: adminip123456 112.95.164.119:7700
8. Log in to the website or APP to check the status of the GPS device online.
Http://www.gpscj.net
APP: YunTrack
Experience account: TEST00
Password:123456

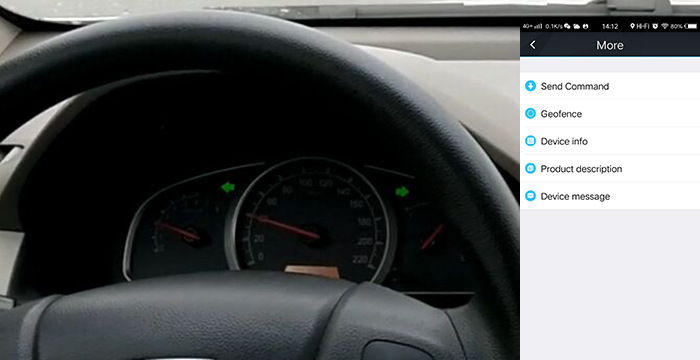

9. Other function setting instruction set. (Please contact store customer service)

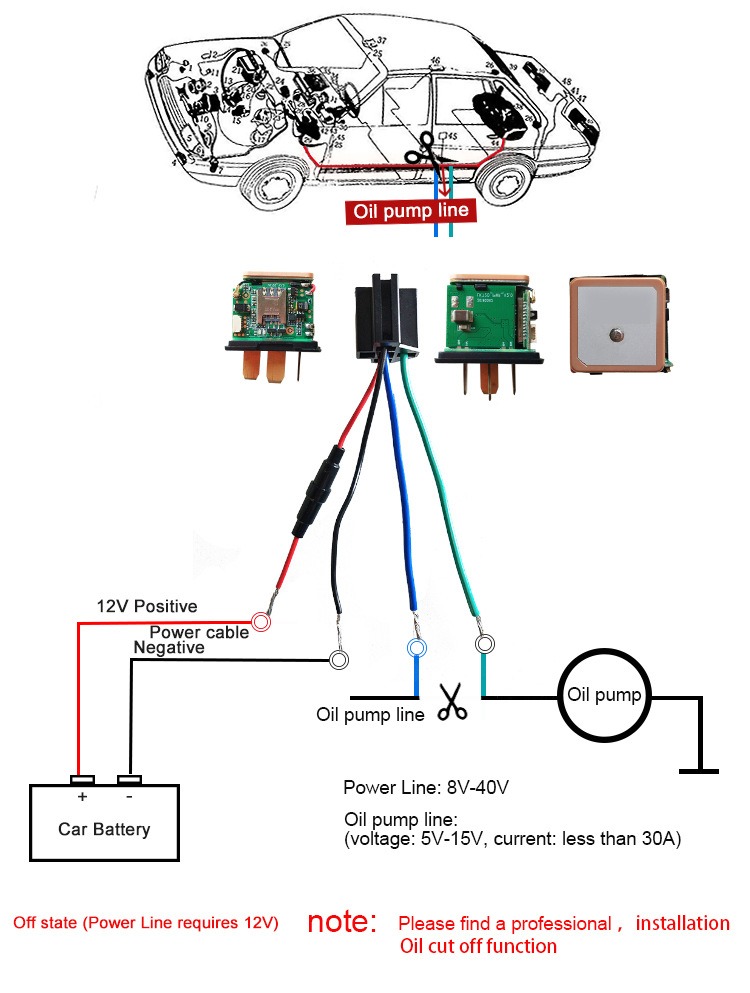

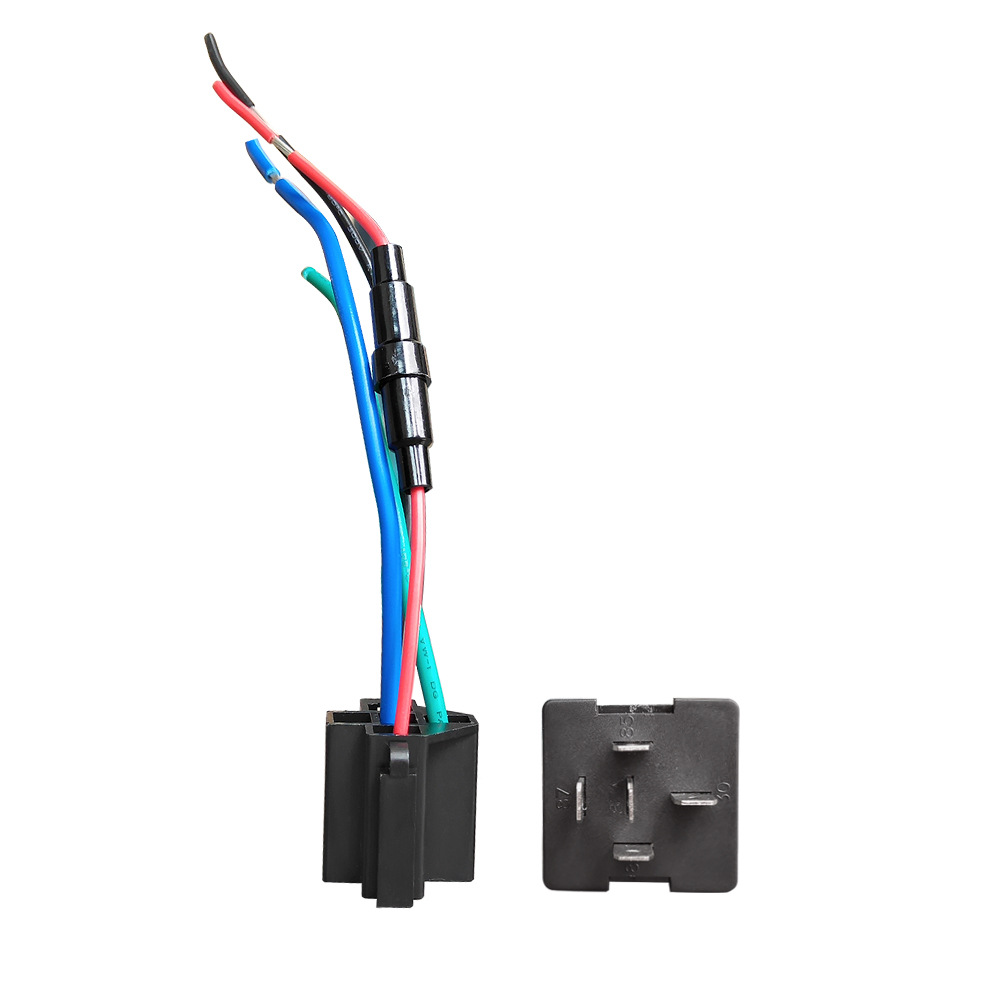

10. Test of oil cutoff function: Please follow the correct wiring method, the current of the fuel pump line needs to be less than 30 amps. (Please find a professional auto repair master to install).

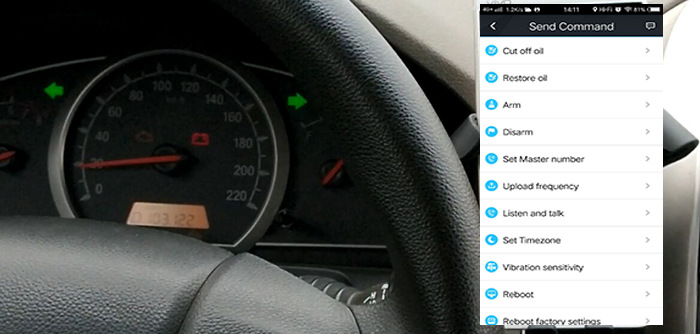

When the SMS command: 555 or APP command is sent: Cut off oil
When the speed of the vehicle is decelerated to 60KM/H at 20KM/H, the fuel supply is stopped and the vehicle is completely stopped.
The vehicle cannot start normally after the fuel cut function is turned on.
The vehicle starts normally only after the fuel cut function is restored. SMS command: 666, APP command: Restore oil
Remarks: Please contact the store customer service if you have any questions.
Use the video introduction link: https://www.youtube.com/watch? v=AhrsDzZnNiQ&feature=youtu.be
