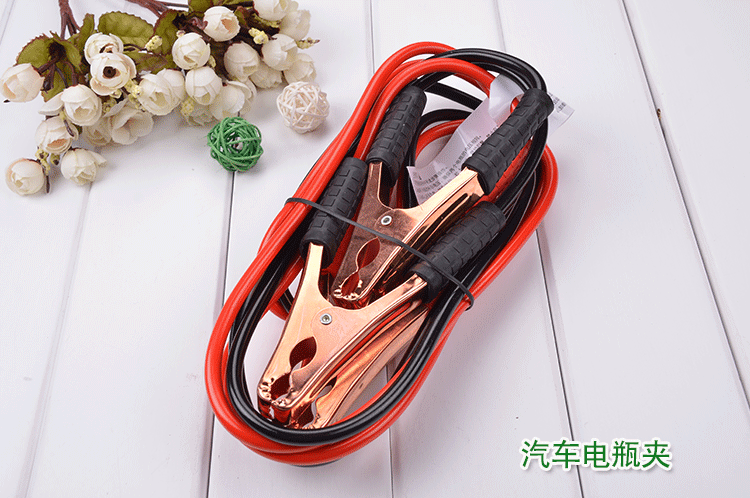

500A specification: copper clad aluminum line: 4.5 square meters, 2.2 meters, outer diameter: 8mm ordinary OPP packaging

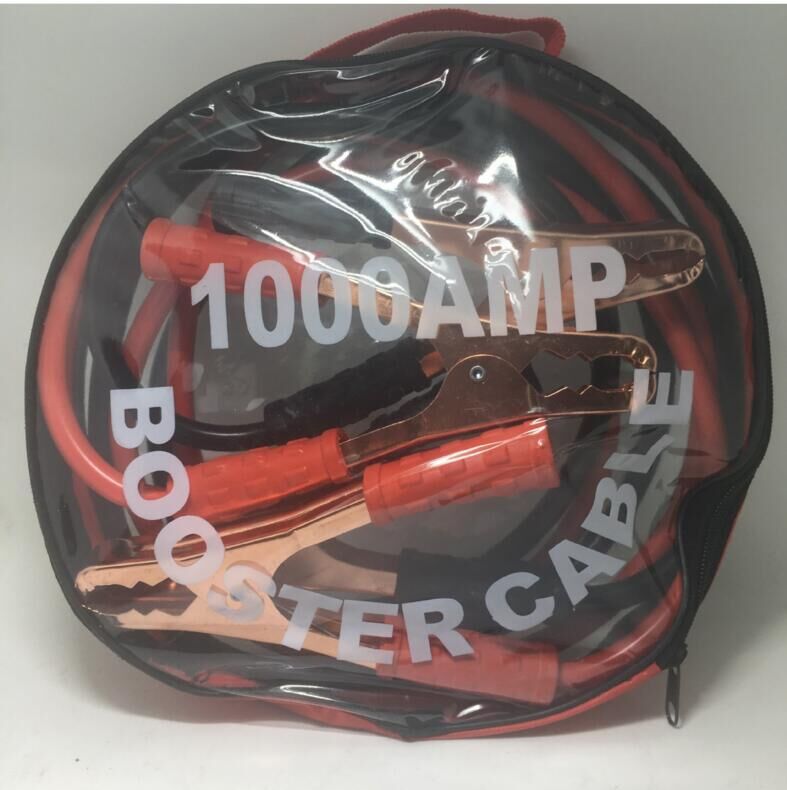

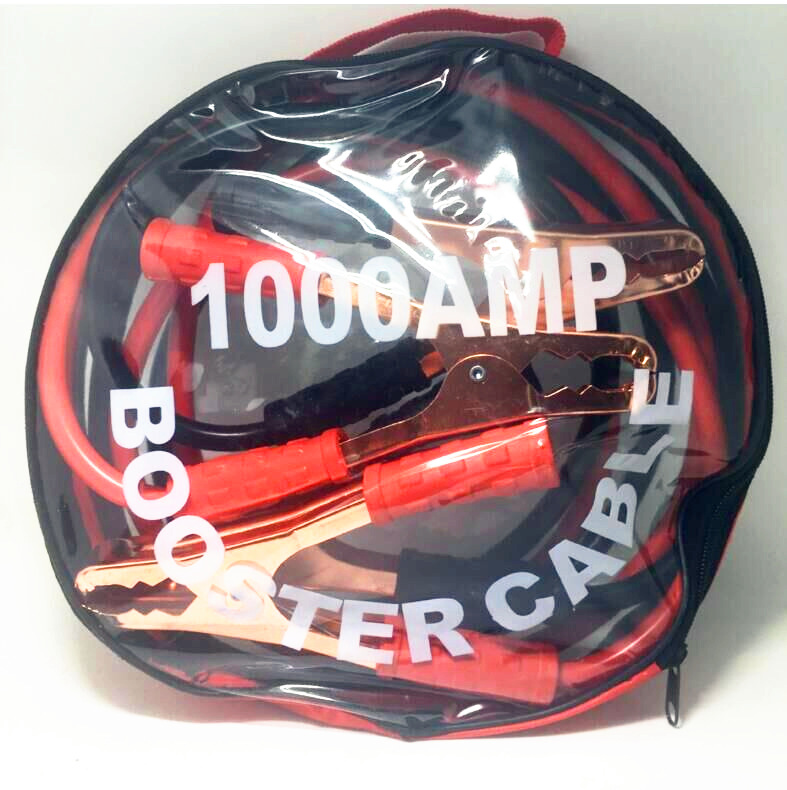

1000A specification: copper-clad aluminium wire:9 square meters, 2.2 meters, outer diameter: 10mm round zipper package
this battery cable model is of good quality and quantity A, not that bad. If you need A cheap B product, please contact customer service!
I. The connection procedure is as follows: (1) first, put the red electric wire clamp of the starting line on the positive electrode of the Red battery of the "rescued car. (2) then put the red wire clamp on the other end" rescue Vehicle" above the positive electrode of the Red battery.
(3) put the black wire clamp in" rescued car' on the black negative battery.
(4) then put the black wire clamp in" rescue Vehicle" on the black negative battery.
(5) start first" rescue Vehicle" engine, and then start" rescued car" the engine. If the rescued car still fails to start,
please check whether the metal contact part has poor contact.
Note: After starting the engine, you still need to remove the starting fire line in sequence, otherwise it may cause short circuit.
II. The procedure for removing wires is as follows:
(1) first" rescued car" remove the black wire.
(2) then" rescue Vehicle" remove the black wire.
(3) and then" rescue Vehicle" remove the red wire.
(4) rear handle" rescued car" remove the red wire.
[Precautions]]:
1. When the car cannot be started without electricity, it can be started through the battery of another vehicle. Bold battery start line,
large overcurrent is500AMP, generally suitable for displacement2500cc less than gasoline engine or displacement2000cc within
use between diesel engine batteries.
2, the two cars cannot have any contact, and the electronic system of the two cars must have the same voltage. If the battery is frozen, please do not
use this boot line.
3. Before connecting, the engine, stereo and air conditioner of the two cars need to be turned off.
|
|
|
