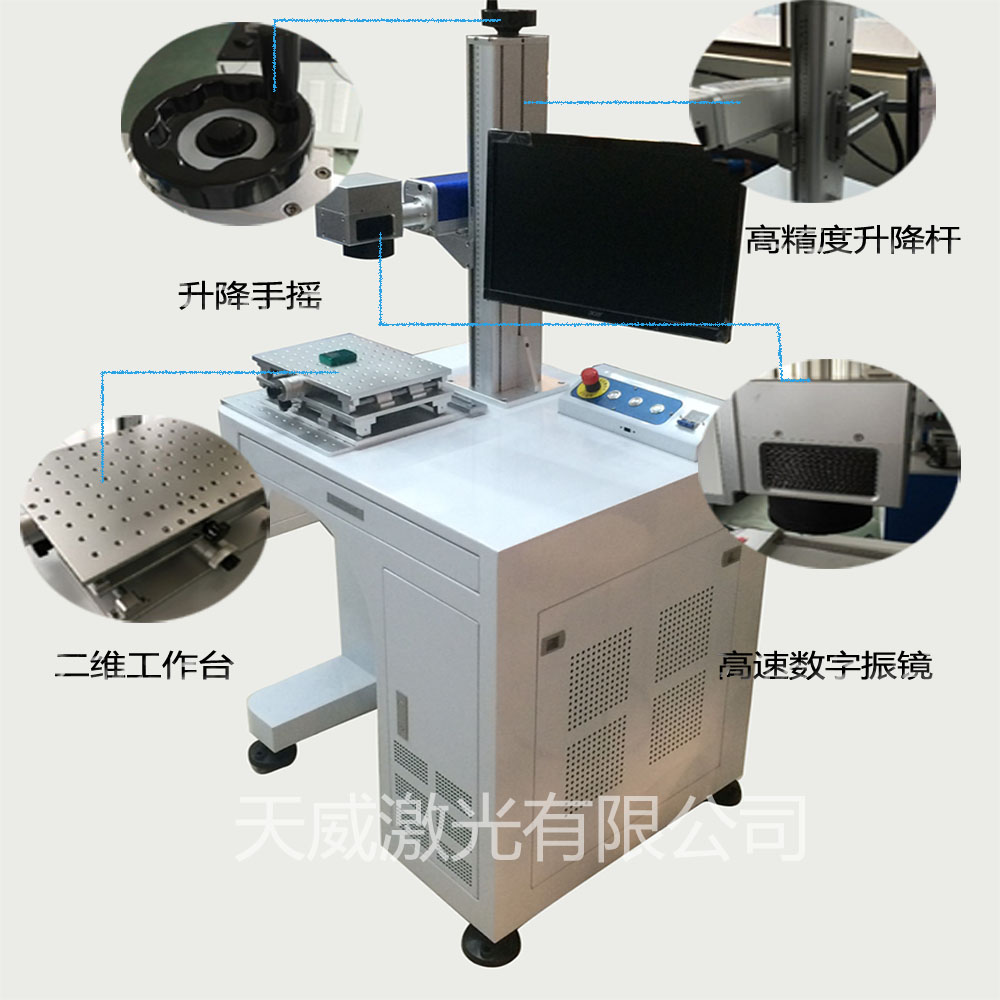

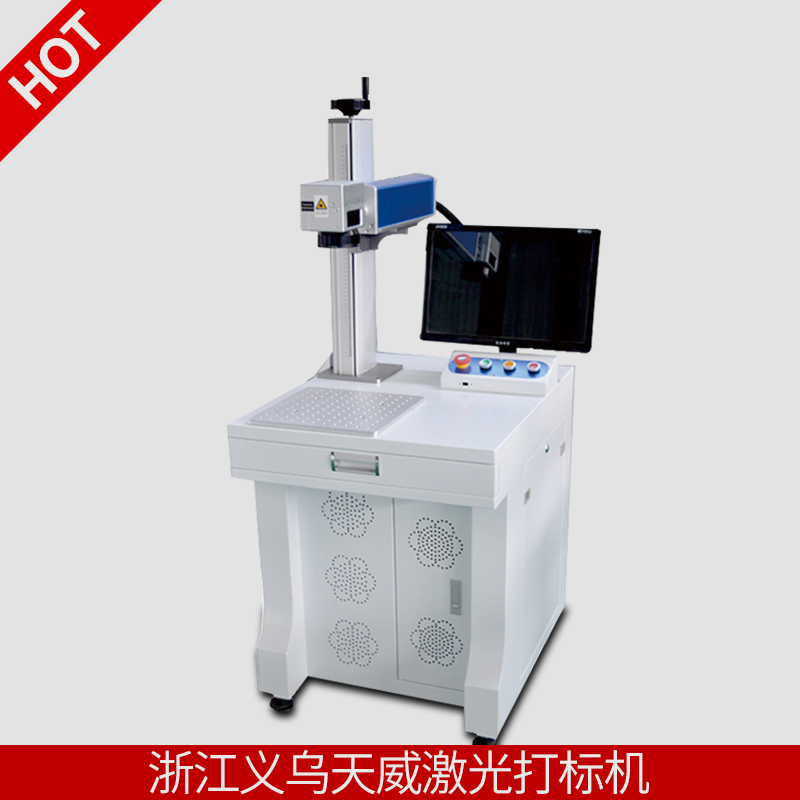

Main components of fiber laser marking machine
Fiber laser marking machine mainly consists of fiber laser, high-speed scanning oscillating mirror, marking software, industrial computer, cabinet and other components. Among them, fiber laser is the main core component.
Advantages of fiber laser marking machine

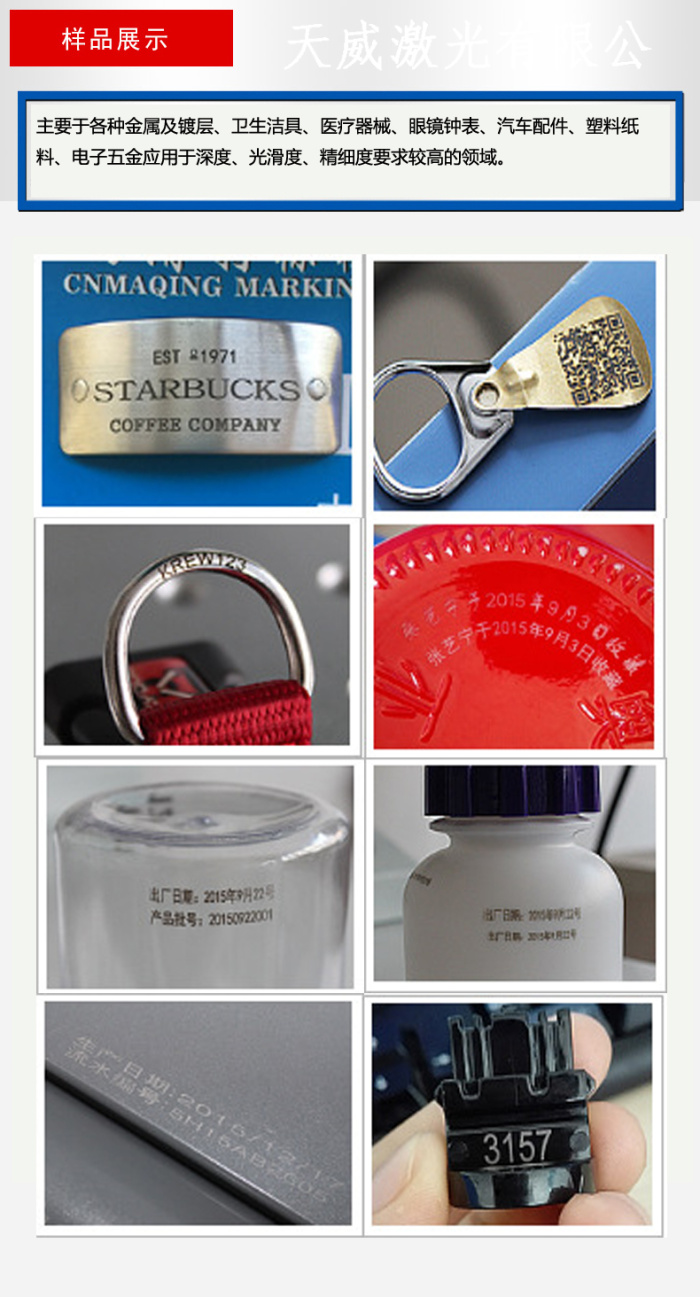

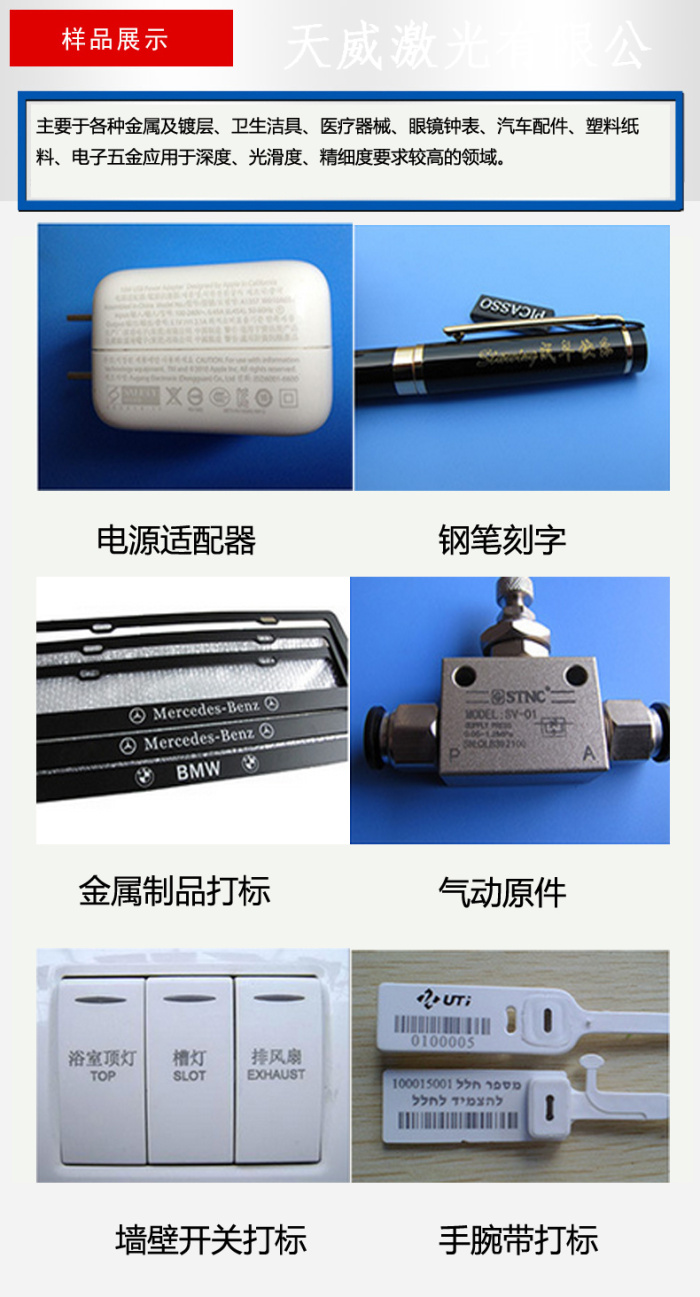

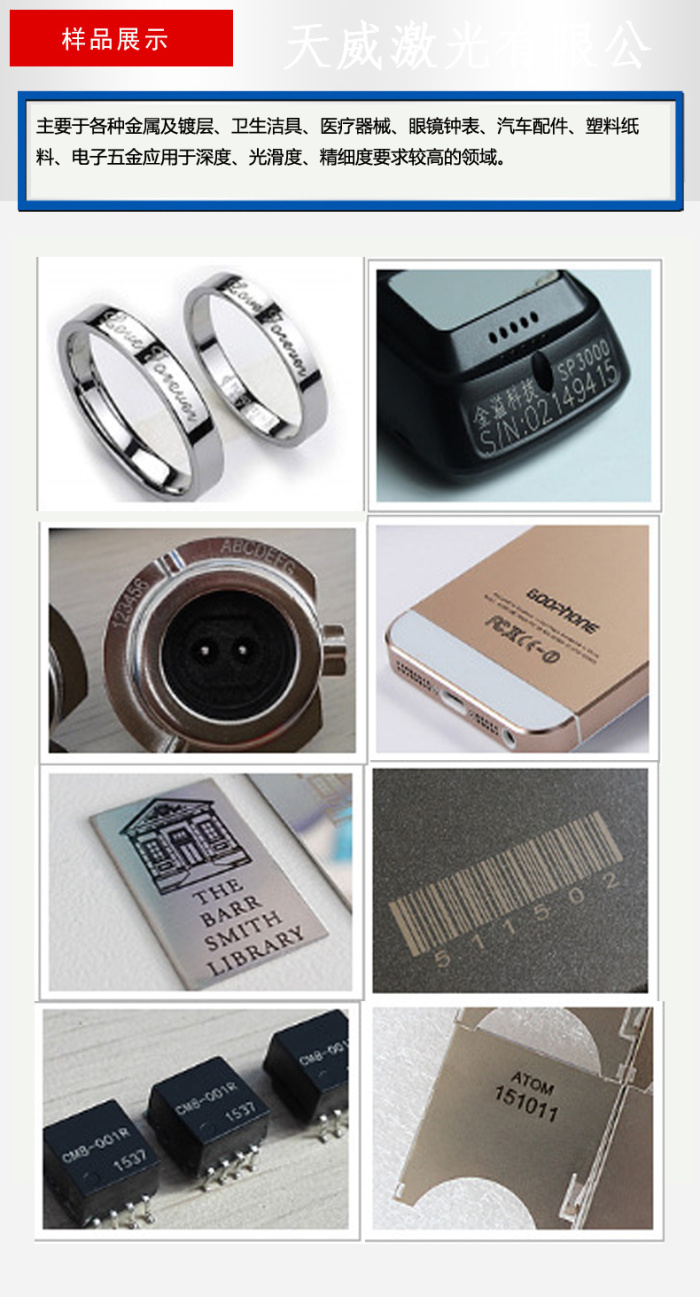

It has the characteristics of good beam quality, small volume, fast speed, long working life, flexible and convenient installation and maintenance-free. Widely used integrated circuit chips, computer accessories, industrial bearings, clocks and watches, electronic and communication products, aerospace devices, various automobile parts, household appliances, hardware tools, molds, wires and cables, food packaging, jewelry, graph and typeface marks in many fields such as tobacco and military affairs, as well as mass production line operations. Fiber laser, international new type, reliable structure, compact size (410*200*270 mm3), low power consumption, no high voltage without huge water cooling system (only about 300W), high beam quality, close to ideal beam, USB interface output control, optical scanning oscillating mirror, high laser repetition frequency, high speed without distortion.
Technical parameters
| Product Model | TW-20W | Average output power | 20W 30W 50W |
|
Laser wavelength |
1064nm | Power adjustment range | 0-100% |
| Repetition frequency | 20-80kHz | Output beam quality | M2<1.5 |
| Marking line depth | ≤ 0.4mm | Minimum focus spot | 0.005mm |
| Minimum character height | 0.15mm | Repetition precision | 0.001mm |
| Maximum linear marking speed | 7000mm/s | Standard engraving range | 100mm * 100mm |
| Optional engraving range | 50mm * 50mm 150mm * 150mm 200mm * 200mm | ||
| Power demand | 220V ± 22V/50Hz/10.0 | Power consumption of the whole machine | <0.5KW |
| Cooling mode | Air cooling | Appearance size |
900mm * 800mm |
| Control Interface | USB | oscillating mirror |
High performance scanning oscillating mirror |
| Laser module life | > 100000 hours | Weight | 150KG |
Routine maintenance1) when the machine is not working, the power supply of marking machine and computer should be shut down in time.
2) when the machine is not working, cover the field mirror lens cap to prevent dust from polluting the optical lens.
3) cut off the power immediately if the machine fails.
4) when the marking effect is not good, carefully check whether the surface of focusing lens is polluted.
5) do not cover the stack or stack other items on the marking machine, so as not to affect the cooling effect of the machine.
6) during the working process of the marking machine, the marking machine shall not be moved to avoid damage to the machine.
7) when the machine fails or the technical problem cannot be solved, you can call the after-sales phone to contact the professional to handle it in time.
